A roll-up door can offer reliable access, security, and weather protection. However, small openings around its edges might still show when it is being used. This will also create opportunities for dust, insects, wind, rain, and the penetration of unwanted light into the enclosed space. A well-chosen brush seal can resolve these gaps and not impede the door’s operation.
Door sealing today is more flexible than a barrier. In a rolling door, a brush assembly can be made to track the motion of the door and still stay in contact with the adjacent surfaces. This makes it ideal for garages and storage areas, commercial buildings, and any other place that frequently makes use of rolling doors.
1. Understanding the Role of a Side Brush Seal
A gap is a frequent occurrence on the sides of a roll-up door curtain between the curtain and the vertical guides. This gap may vary, as the door must have sufficient clearance to open and close easily. Too much open space, though, can diminish the effectiveness of the enclosure. A side-mounted brush seal is used to cover this clearance and still permit the door to move through its normal travel.

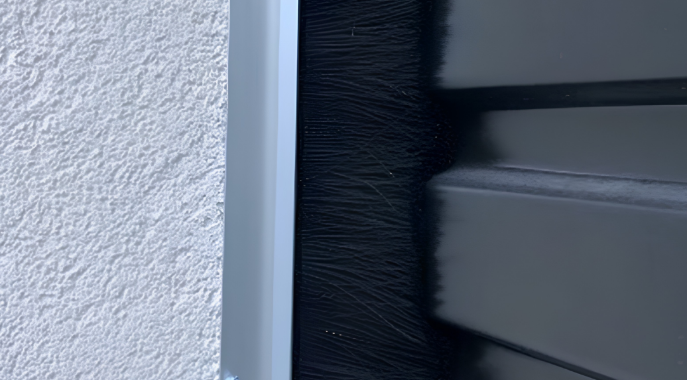

The roll up door side brush seal is a flexible filament that is attached to a rigid holder. The bristles bend and conform around the surrounding surface as the door moves. This provides a flexible sealing layer, but does not require the brush to be absolutely rigid.
Brush filaments can tolerate minor irregularities around the edges of the door, which solid strips cannot. They can also be useful to block out common environmental factors.
What Side Brush Seals Help Control:
- Dust entering through vertical door gaps
- Wind moving through side clearances
- Insects passing through small openings
- Rain and moisture exposure around the edges
- Unwanted daylight visible through door gaps
2. Choosing Materials for Reliable Door Sealing
Brush selection has a direct impact on the performance of a brush seal during repeated openings and closings. The bristles should also be sufficiently flexible to move along with the door movement. They also must have enough resilience to keep them in contact with the surrounding surface.
The nylon filaments are used as they provide flexibility and durability. They are made so that the bristles can bend back and forth without needing a sealing surface. This is a key feature on doors that are used a lot during the day.
The holder is also of great structural significance. Aluminium retainers offer a solid base for holding the brush assembly and retainers in place, while maintaining a relatively practical installation. Straight or angled holders may be used to set the bristles in the proper position, depending on the type of door.
Important Material Considerations:
- Durable nylon filaments for repeated movement
- Aluminum holders for stable mounting
- Appropriate filament density for the opening
- Suitable bristle height for the existing clearance
- Construction designed for regular door operation
3. Matching Brush Dimensions to Door Gaps
When installing a brush seal, it is important to size it properly. If the brush is too short, it might leave some parts of the gap exposed. If the brush is too long, it will cause unnecessary resistance to the moving door.
The length of bristles should therefore be equal to the distance to be traversed. Different filament lengths for different side-guide conditions can be available. They are typically available in sizes from about 1″ to 4″, depending on the application.
The width of the holder is a factor to consider as well. The width of the holder can be a factor for narrow setups, and wider holders can offer more flexibility when mounting. When ordering, knowing how much space is available will help avoid installation issues and adjustments.
If you are undertaking a larger project, you may find it easier to install by using different pre-cut lengths. The sections can be made to the required sizes rather than having to adjust an unsuitable standard section for the installer.
4. Installation That Supports Smooth Door Movement
The brush seal should not interfere with the operation of the door. Installation starts with an inspection of the side guides and determining where the opening is most obvious. The mounting surface must be clean, stable, and appropriate for the chosen fixing method.
The holder should stay in place firmly along the edge it is intended to be aligned with. The bristles should be directed towards the gap and not compressed too much. If they are installed correctly, they will bend naturally with the door motion.
Gemax can accommodate standard and custom brush seal designs for a variety of roll-up door applications. They can be manufactured with varying brush lengths, holder designs, and filament sizes.
Once installed, open and close the door a few times. Look for excessive friction, contact imbalance, or places where the bristles don’t reach the opening. Fine adjustments can be made to the fit.
5. Extending Sealing Beyond the Door Sides
A rolling door can expose unwanted areas besides the side gaps. There can also be openings in the upper part of the door. Brush sealing systems can therefore be arranged to be installed from the side or from the top.
A co-ordinated arrangement can provide more even coverage around the perimeter of the door. Side brushes can be used to clear vertical openings, and top mounted brush can be used to clear overhead openings. Using compatible components can also simplify installation and maintenance.
For situations in which multiple sealing points need to be addressed, full brush seal kits can be helpful. These kits can include brushes, holders, and necessary mounting pieces in an integrated solution.
6. Maintenance for Consistent Sealing Performance
Brush seals have a low maintenance requirement, but regular inspection is recommended. The constant opening and closing of doors can lead to exposure of the bristles to dust, debris, moisture, and physical wear. The freely moving filaments can be influenced by accumulated debris.
Check the brush for bent, missing, or severely worn parts every so often. Inspect holder for loose mounting points or deformations. It is also important to clean off any dirt that has built up, as this can help keep the bristles moving freely.
When the brush is no longer adequate for coverage, it is time to replace it. Brush assemblies are available in several lengths, so if the brushes wear out, it doesn’t mean that the whole door system needs to be replaced.
Conclusion
It isn’t just about looks; small gaps around a roll-up door can make a difference. They can allow for dust, insects, wind, moisture, and unwanted light. A well-sized brush seal is a good solution to make the openings less obvious and allow for standard door operation.
The durable nylon filaments, robust aluminum holders, appropriate bristle lengths, and correct installation all lead to reliable performance. Brush sealing can be used in garages, storage facilities, commercial doors, and other rolling-door applications by using standard and customized configurations. The correct selection of size and regular maintenance of the assembly can help to ensure that effective gap coverage is maintained with repeated use.
