9 Steps to Build Do-It-Yourself Kitchen Cabinets From Start to Finish

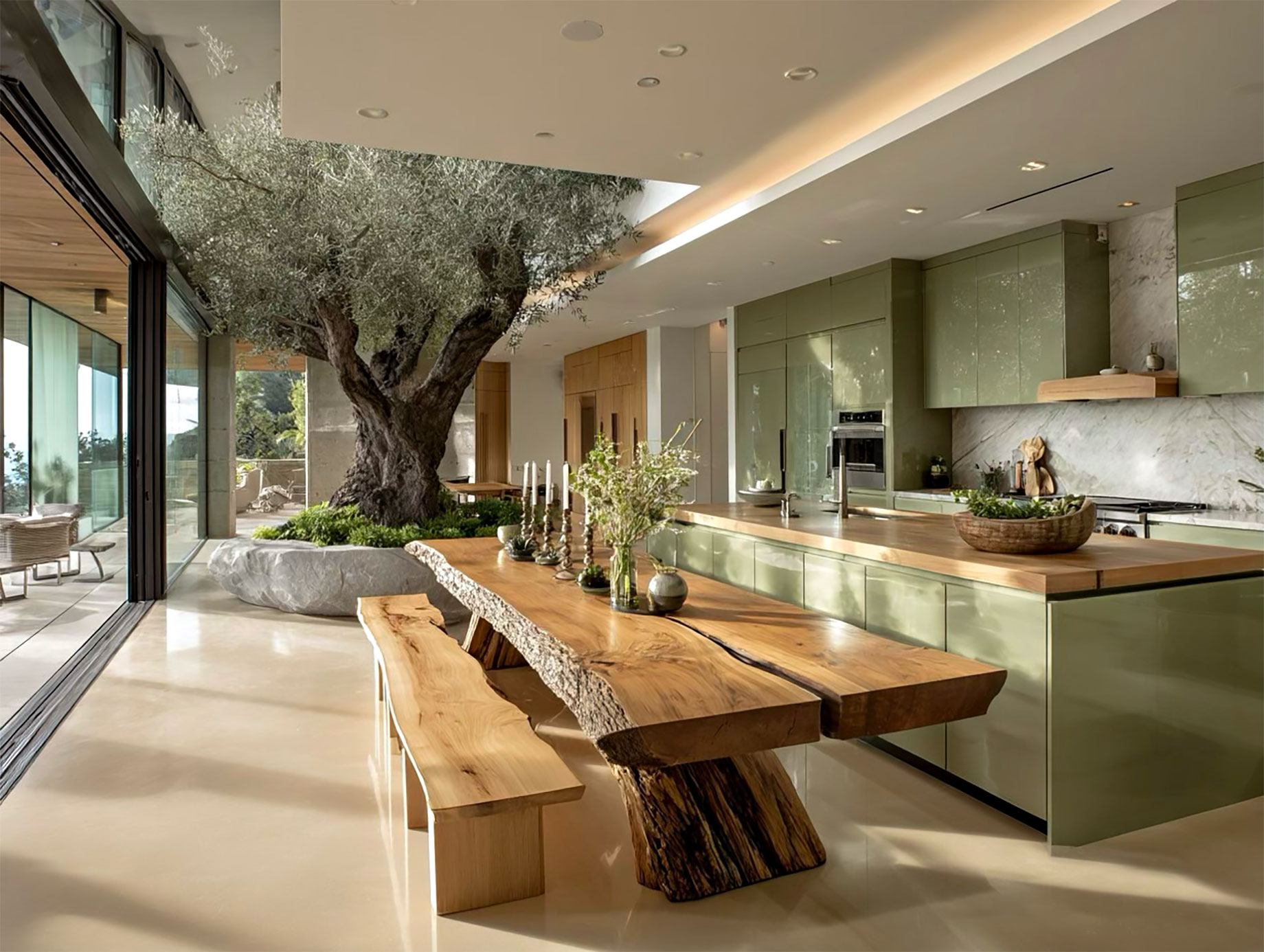

Modern kitchen with custom wood cabinetry, large natural wood dining table, and an indoor olive tree creating a warm, handcrafted atmosphere.

When you walk into a kitchen, the cabinets are usually the first thing that catches your eye. They set the tone for the room—warm and rustic, sleek and modern, or somewhere in between.

But kitchen cabinets can also be one of the most expensive parts of a remodel. That’s why many homeowners are choosing to build their own.

Building do-it-yourself kitchen cabinets might sound intimidating at first, but with patience and clear instructions, it becomes an achievable project. Not only do you save thousands of dollars, but you also end up with cabinets that perfectly suit your style and space.

The process requires planning, careful measuring, and some basic tools, but the reward is worth it: a kitchen you can proudly say you built with your own hands.

In this guide, we’ll break the process into nine clear steps. From planning to installation, each stage brings you closer to the kitchen you’ve dreamed of.

Step 1: Plan Your Cabinets and Take Measurements

The success of your project starts long before you pick up a saw or hammer. Proper planning is what separates a smooth build from a frustrating one.

Begin by studying your kitchen space carefully. Grab a tape measure and record the dimensions of every wall where cabinets will go. Measure the width, height, and depth. Don’t forget to note obstacles like windows, outlets, plumbing, and appliances. These details will influence the size and placement of your cabinets.

Once you have your measurements, sketch a layout on paper. It doesn’t have to be artistic—a simple drawing with labels is enough. This sketch will act as your road map. Decide where base cabinets (the lower units) will go and where wall cabinets (the upper units) will be placed.

Think about your cooking habits. Do you need tall pantry-style cabinets for food storage? Would you prefer more drawers for pots, pans, and utensils? Maybe you want open shelving for easy access. The planning stage is where you customize your kitchen to match your daily life.

Taking the time here will save headaches later. A few hours of careful planning can prevent costly mistakes once you start cutting wood.

Step 2: Choose Your Materials

Once the plan is in place, the next step is choosing your materials. This decision affects both the cost and durability of your cabinets.

For the cabinet boxes—the skeleton that holds everything together—plywood is the most popular choice. It’s strong, resists warping, and holds screws well. While it may cost a bit more than particleboard, it lasts longer, especially in kitchens where moisture is common.

MDF (medium-density fiberboard) is another option. It’s smooth, affordable, and easy to paint. However, it’s not as durable as plywood and can swell if exposed to water. If you’re on a budget and plan to paint your cabinets, MDF can be a good choice.

For the visible parts—the doors and face frames—many people prefer hardwoods like oak, maple, or birch. These woods are durable and take stain beautifully, giving your cabinets a polished look. If you want to paint instead of stain, MDF doors can work well since they provide a smooth surface.

By balancing your budget and your vision, you can select materials that fit both your wallet and your dream design.

Step 3: Gather Your Tools

You don’t need a professional woodworking shop to build kitchen cabinets, but you do need the right tools to make the job easier. At minimum, you’ll need:

  • Circular saw or table saw for cutting large panels of plywood or MDF.
  • Drill and drill bits for making holes and driving screws.
  • Clamps to hold pieces steady while gluing or screwing them together.
  • Measuring tape and carpenter’s square for accuracy.
  • Sander or sandpaper for smoothing surfaces.
  • Wood glue and screws to hold everything together.
  • Safety gear like glasses, ear protection, and a dust mask.

Having the right tools makes a world of difference. Trying to cut large sheets of plywood without a proper saw can lead to uneven edges and wasted material. If you don’t own all these tools, check your local hardware store—many offer rentals at affordable prices.

Remember, good tools don’t just make the project easier. They also help your finished cabinets look more professional.

Step 4: Cut the Panels

Now comes the exciting part—cutting the panels that will form your cabinet boxes. Each cabinet typically has six parts: two sides, a top, a bottom, a back panel, and a face frame.

Start by marking your plywood sheets with clear pencil lines. Always double-check measurements before cutting. The old saying “measure twice, cut once” is especially true here. Use a circular saw with a guide or a table saw for clean, straight cuts.

If your plywood has a visible grain pattern, pay attention to how the grain lines up. Keeping the grain consistent across panels gives the finished cabinets a polished, professional appearance.

It’s normal to feel nervous at this stage, especially if you’re new to woodworking. Take your time. A slow, careful cut is better than rushing and making mistakes.

Step 5: Assemble the Boxes

With your panels cut, it’s time to put the pieces together. Begin by laying out the sides, top, and bottom in the shape of a box. Apply wood glue along the edges, then secure with screws.

Clamps will be your best friend here. They hold the panels in place while you drill, preventing shifting. Make sure each corner forms a perfect right angle. Even a small misalignment can cause trouble when you install the doors later.

Finally, attach the back panel. This not only strengthens the box but also squares everything up. At this stage, your project will really start to look like a cabinet.

Repeat the process for each cabinet box. One by one, you’ll see your kitchen taking shape.

Step 6: Build and Attach the Face Frames

The face frame is what you see when you look at the front of the cabinet. It gives the box a polished, sturdy appearance.

Face frames are usually made of hardwood strips—vertical pieces called stiles and horizontal pieces called rails. Cut each piece to fit the size of your cabinet front. Join them using wood glue and pocket screws, dowels, or biscuits.

Once assembled, attach the frame to the front of your cabinet box. Use clamps to keep it snug while the glue dries. Make sure the edges are flush with the box for a clean look.

This step may feel like extra work, but it makes a big difference. Face frames not only improve the appearance but also add strength and make it easier to align cabinet doors.

Step 7: Build the Doors and Drawers

The doors and drawers are where style meets function. They can be as simple or as detailed as you like.

For beginners, flat-panel doors are the easiest. Cut plywood or MDF panels to size, then sand the edges smooth. If you want a classic look, consider shaker-style doors, which are simple frames with recessed centers. These require more work but give your cabinets a timeless appeal.

Drawers are built like small boxes. Cut four sides and a bottom panel. Use sturdy slides so they open and close smoothly. The key is precision—if drawers are even slightly off, they won’t glide properly.

At this stage, you can also add trim or molding for extra character. But don’t feel pressured to get fancy. Simple designs often look clean and elegant, especially once painted or stained.

Step 8: Sand, Prime, and Finish

This step transforms raw wood into finished cabinetry. Start with sanding. Use coarse sandpaper first to remove rough edges, then move to finer grits for a smooth finish. Sanding between each coat of paint or stain ensures a professional result.

If you’re painting, apply a coat of primer. This seals the surface and helps the paint stick. Once dry, add two coats of paint, allowing proper drying time in between. For a smooth finish, sand lightly between coats.

If you prefer a natural wood look, apply a stain. Wipe it on with a cloth, let it soak, then wipe off the excess. Once dry, seal it with polyurethane to protect against scratches and moisture.

Take your time here. The finish is what people notice most. Smooth, even coats will make your DIY cabinets look store-bought.

Step 9: Install the Cabinets

The final step is installation. Start with the base cabinets. Use a level to check your kitchen floor and find the highest point. Begin installation there to ensure all cabinets line up evenly.

Set each cabinet in place and check that it’s level front to back and side to side. Shim underneath if necessary. Screw the cabinets into the wall studs and into each other for strength.

Once the base cabinets are secure, move on to the upper cabinets. Having an extra set of hands is helpful here. Hold each cabinet in place, check for level, then screw it into studs.

Finally, attach the doors, drawers, and hardware. Adjust the hinges so doors close evenly. Once complete, step back and admire the transformation. You’ve built a kitchen with your own two hands.

Why Build Cabinets Yourself?

DIY kitchen cabinets are about more than saving money. They’re about control and customization. Store-bought cabinets come in limited sizes and styles. When you build your own, you choose every detail—dimensions, finishes, hardware, and layout.

Yes, it takes time, patience, and effort. But the pride you’ll feel each time you walk into your kitchen is priceless. Every cut, screw, and brushstroke is a reminder of your hard work.

And remember, the skills you gain from this project will stay with you. Once you’ve built a set of cabinets, other home projects will feel much less intimidating.

Final Thoughts

Building your own kitchen cabinets may seem like a big challenge, but when broken into steps, it becomes manageable.

You start with planning and measuring. You cut, assemble, and sand. You finish with installation. Step by step, the project comes together until, one day, you’re standing in a kitchen built by your own effort.

From the first measurement to the final screw, each stage adds to your confidence. The reward isn’t just cabinets—it’s the satisfaction of creating something lasting with your own two hands.

So if you’re ready to save money, customize your space, and take on a project that will make you proud, pick up your tools. Your dream kitchen is waiting to be built—one cabinet at a time.
